HIGH GAIN Twin HGTLNB 201 - двоен офсетов конверстор

HIGH GAIN Twin LNB

модел: HGTLNB 201

Висококачествен двоен офсетов конвертор

Голямо усилване (high gain) и ниък шум (low noise) 0.1 dB

Приема High Definition, 4K ULTRA HD и 3D сигнал

HIGH GAIN Twin LNB

модел: HGTLNB 201

Висококачествен двоен офсетов конвертор

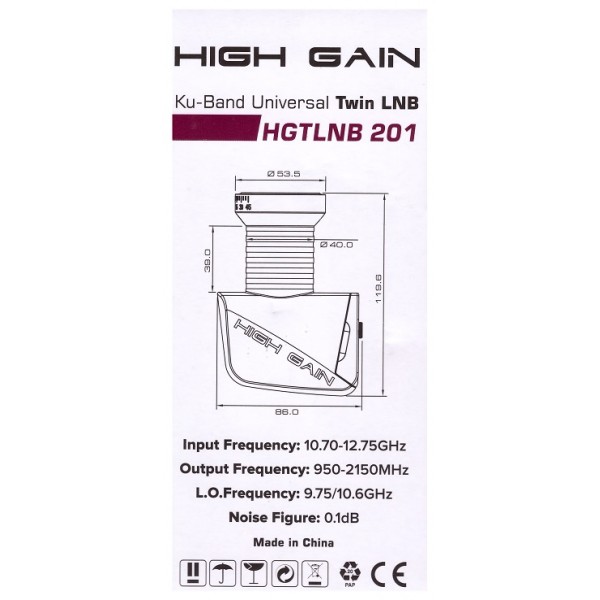

Технически характеристки:

NO.	Item	Specification
1	Input Frequency	10.7--11.7GHz	11.7--12.75GHz
2	Output Frequency	950--1950MHz	1100--2150MHz
3	LO Frequency	9.75GHz	10.6GHz
4	LO Initial Accuracy (@ 25°C)	±1MHz
5	LO Temperature Drift (@-30°C^+60°C)	±2MHz
6	LO Phase Noise (@ 1 KHz offset)	- 65 dBc/Hz(Max.)
	(® 10KHz offset)	- 85 dBc/Hz(Max.)
	(® 100KHz offset)	- 90 dBc/Hz(Max.)
7	Noise Figure	0.1 dB(Typ.)
8	Conversion gain	55--65dB
9	Gain Variation(over operating band)	8 p-p(Max.)
10	Gain Flatness(any 27 MHz)	±0.75dB
11	Cross pol. isolation	18dB(Min.) 22(Typ.)
12	Image Rejection	40dB(Min.)
13	1dB compresstion point	0dBm(Min.)
14	Output VSWR	2.5:1(Max.)
15	LO spurious @22KHz	- 45 dBc(Max.)
16	LO harmonic and non-harmonic spurious	- 55 dBc(Max.)
17	DC Current consumption	200mA(Max.)
18	polarization switching voltage	vertical:10.5--14.5V
		Horizontal:15.5--21V
19	Band switching voltage	150mV--350mV
20	Band switching frequency	High band: 22±4kHz tone
21	regulator of ripple	20mV(Max.)
22	Operation Temperature	- 30C-- + 60C
23	Output connector	75П F type
24	LO shift (13V/18v)	0KHz
25	waterproof	Ipx8(Typ.) 0.25kg/Cm²(Min.)
