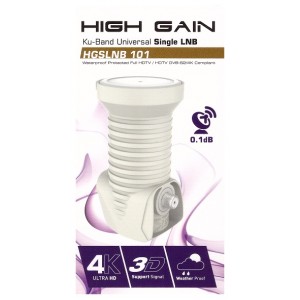

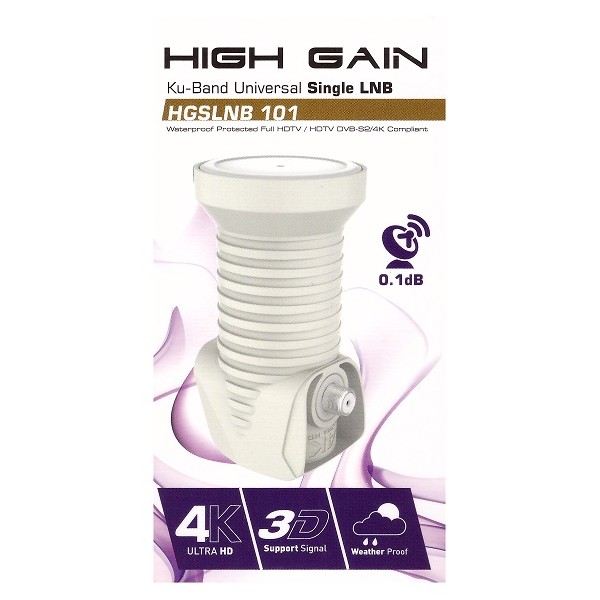

HIGH GAIN Single HGSLNB 101 - единичен офсетов конверстор

HIGH GAIN Single LNB

модел: HGSLNB 101

Висококачествен единичен офсетов конвертор

Голямо усилване (high gain) и ниък шум (low noise) 0.1 dB

Приема High Definition, 4K ULTRA HD и 3D сигнал

HIGH GAIN Single LNB

модел: HGSLNB 101

Висококачествен единичен офсетов конвертор

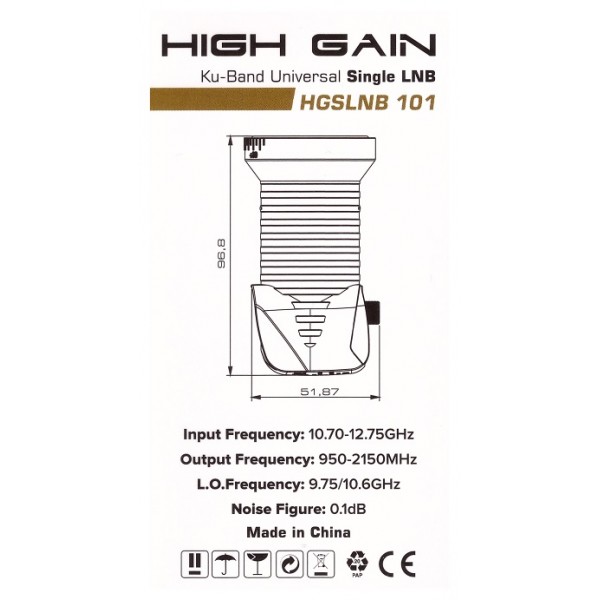

Технически характеристки:

NO.	ITEM	SPECIFICATIONS	UNIT
1	Low band I/P frequency range:	10.7-11.7	GHz
2	O/P frequency range+:	950-1950	MHz
3	Low band LO. frequency:	9.75	GHz
4	Control signals:	Ca or Cb
5	High band I/P frequency range:	11.7-12.75	GHz
6	O/P frequency range+:	1100-2150	MHz
7	High band LO. frequency:	10.6	GHz
8	Noise figure:	0.1 (typical)	dB
9	Lo initial accuracy:	±1	MHz
10	Lo temperature drift:	±3	MHz
11	Lo phase noise @1K Hz:	55	dBc/Hz
	@10K Hz:	75	dBc/Hz
	@100K Hz:	90	dBc/Hz
12	Conversion gain:	55-68	dB
13	Gain variation:	6	dB
14	Image rejection:	40(Min.)	dB
15	O/P 1dB compressino point:	0(Min.)	dBm
16	Crosstalk isolation	20(Min.)	dB
17	Control signals Ca {V}:	11.0-14.5	V
	Control signals Cb {H}:	15.5-20.0	V
18	Control signals (Cc}:	22±4	KHz
19	O/P VSWR:	2.5:1	-
20	Radiated interference [1.7]:		dBm
21	Output connector:	75 ohms F-type [Female]
22	Polarity switching voltage:	Vertical: 11.5-14.5	V
	Polarity switching voltage:	Horizontal: 15.5-19	V
23	Lo frequency stability {25°C}: (-30°Cc-60°Cc):	±3	MHz
	Lo frequency stability {25°C}: (-30°Cc-60°Cc):	±3	MHz
24	DC power consumption:	90mA (typical), 120mA (max)	mA
25	Working temperature:	-30-+70	C
